Ozone Generators

We are Manufacturer, Supplier of Ozone Generators from Pune, Maharashtra, India.

Ozone Generators

Introduction

Ozone integration for a wide variety of ozone and AOP applications. We supply application specific equipment designed for reliable operation, along with engineering and advice to ensure your project is successful. We also provide parts, service, and repair of your ozone equipment The ozone layer located 20 to 50 km above the ground surface protects the world from intense UV rays. An eco-friendly approach using the oxidation power of ozone, a substance widely seen in nature, has been used for many years to support our daily life in the field of water and air treatments. The ozone generation system develop Portico realizes high-efficiency ozone generation based on advanced technology. This technology has been adopted in many water and waste water facilities to date

How is ozone produced?

Ozone is produced when oxygen molecules (O2) are split into atomic oxygen (O) then recombined into ozone. (O3). In most commercial applications, ozone is produced when a gas containing oxygen is passed through an electrical field separated by two electrodes. When oxygen molecules in the gas interact with the electrical field, they split and recombine forming ozone. This process is the Corona Discharge ozone generation method.

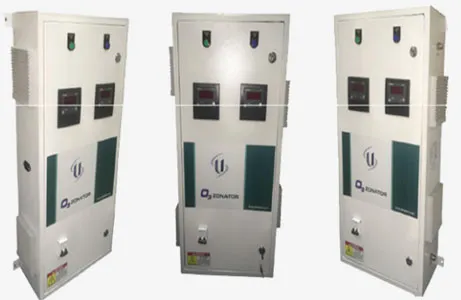

Ozone Generator
Click to Request a Quote

Why use ozone generation for disinfection?

Ozone is one of the strongest oxidant agents on the market – 50% stronger than chlorine – making it one of the most powerful oxidants available in today’s municipal, industrial and commercial markets Ozone oxidation is the most excellent and environment friendly to disinfects the water and air. It works effectively against bacteria, viruses compared to chlorine. In addition, oxidizing properties can also reduce the concentration of iron, manganese, sulfur and reduce or eliminate taste and odour problems. Ozone oxides the iron, manganese, and sulfur in the water to form insoluble metal oxides or elemental sulfur. These insoluble particles are then removed by post-filtration. Organic particles and chemicals will be eliminated through either coagulation or chemical oxidation. Ozone is unstable and it will degrade over a time frame ranging from a few seconds to 30 minutes. The rate of degradation is a function of water chemistry, pH and water temperature.

Application of Ozone Generators

Ozone decays into harmless oxygen and is an environmentally friendly technology that does not create any chlorinated disinfection byproducts. Due to ozone’s oxidation power, it has many advantages for water treatment systems, including Applications

  • Ozone generator for water treatment
  • Ozone generator for air purification
  • Ozone generator for odour removal
  • Ozone generator for STP
  • Ozone generator for ETP
  • Ozone generator for Water purification
  • Ozone generator for wastewater treatment
  • Ozone generator for swimming pool
  • Ozone generator for aquaculture

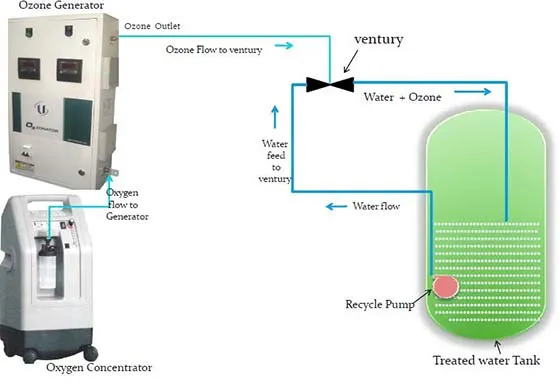

Ozone Application

Ozone Benefits

Ozone can be used in many applications and it is generated on site from oxygen, which eliminates the need to haul chemicals or other dangerous products. In many applications ozone saves money, environment & time. Ozone is much healthier & safer to use than harsh caustic chemicals & it does an excellent job. There are many applications where thermo oxidation is used to disinfect or clean. Ozone can do the same job as thermo oxidation, but with the advantage of working in cold environments, this provides savings in energy & money.

  • Ozone is 51% more powerful on bacterial cell walls than chlorine.
  • Ozone kills bacteria 3100 times faster than chlorine.
  • Ozone is the most powerful broad spectrum microbiological control agent available
  • Ozone eliminates the use of hot water and conventional sanitizer.
  • Ozone virtually eliminates all chemical usage
  • Ozone is chemical-free; it produces NO toxic by-products
  • Ozone has full FDA-approval for direct-food contact application
  • Ozone is clean and environment-friendly, its only by-product is oxygen.
  • Ozone is extremely effective as a disinfectant at relatively low concentrations
  • Ozone is generated on site eliminating the transporting, storing and handling of hazardous materials
  • Ozone is very inexpensive to produce and has an unlimited supply
  • Ozone is much safer for employees than any conventional chemicals
  • Ozone extends the shelf life of food products
  • Ozone permits recycling of wastewater
  • Ozone reduces Biological Oxygen Demand (BOD)

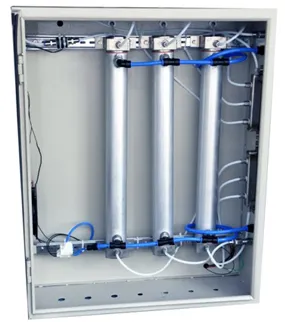

To perform ozone generation by silent discharge efficiently, the dimensional accuracy of a discharge section on an electrode and efficient cooling of the ozone generation tube are important.The ozone generation tube developed. Portico has realized an excellent dimensional accuracy and offers high cooling efficiency Thanks to this structure, high-efficiency ozone generation is possible.

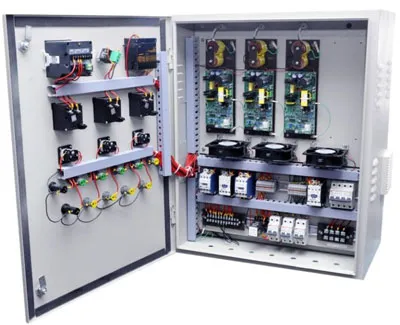

A high-reliability ozone generation system is supplied based on the combination of an ozone generation tube with low breakage risks and inverter power technology highly acclaimed in domestic and international markets

Technologies and performances
Ozone Generator
Ozone Generator
Model# POG-A05 POG-A10 POG-A20 POG-A25/ POG-W25 POG-A30/ POG-W30 POG-W50 POG-W75 POG-W100 POG-W150 POG-W200 POG-W300 POG-450
Ozone Output 05 g/hr 10 g/hr 20 g/hr 25 g/hr 30 g/hr 50 g/hr 75 g/hr 100 g/hr 150 g/hr 200 g/hr 300 g/hr 450 g/hr
Technology used Corona Discharge Corona Discharge Corona Discharge Corona Discharge Corona Discharge Corona Discharge Corona Discharge Corona Discharge Corona Discharge Corona Discharge Corona Discharge Corona Discharge
Power Supply AC 220V/5A, 50Hz, 1 Ø AC 220V/5A, 50Hz, 1 Ø AC 220V/5A, 50Hz, 1 Ø AC 220V/5A, 50Hz, 1 Ø AC 220V/5A, 50Hz, 1 Ø AC 220V/10A, 50Hz, 1 Ø AC 220V/10A, 50Hz, 1 Ø AC 440V/15A, 50Hz, 3 Ø AC 440V/15A, 50Hz, 3 Ø AC 440V/15A, 50Hz, 3 Ø AC 440V/15A, 50Hz, 3 Ø AC 440V/15A, 50Hz, 3 Ø
Power (Watts) 100W 200W 350W 375w 375W 700W 1000W 1250W 1850W 2500W 3750W 5600W
Cooling Type Air Cooled Air Cooled Air Cooled Air Cooled / Water Cooled Air Cooled / Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Water Inlet Pressure - - - 1 - 10 PSI 1 - 10 PSI 1 - 10 PSI 1 - 10 PSI 1 - 10 PSI 1 - 10 PSI 1 - 10 PSI 1 - 10 PSI 1 - 10 PSI
Operating Temperature 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C 0 - 40˚C
Ozone Concentration 70 - 80 g/m3 70 - 80 g/m3 70 - 80 g/m3 70 - 80 g/m3 / 80 - 90 g/m3 70 - 80 g/m3 / 80 - 90 g/m3 80 - 90 g/m3 80 - 90 g/m3 80 - 90 g/m3 80 - 90 g/m3 80 - 90 g/m3 80 - 90 g/m3 80 - 90 g/m3
MOC of Electrode SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L SS 304L/316L
No. of Electrodes 01 Nos 01 Nos 02 Nos 01 Nos 03 Nos / 01 Nos 02 Nos 03 Nos 04 Nos 06 Nos 08 Nos 12 Nos 18 Nos
MOC of all Ozone contact parts SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass SS/Teflon/Glass
Oxygen Flow 2.0 LPM 4.0 LPM 5.0 LPM 7.0 LPM / 5.0 LPM 8.0 LPM / 6.0 LPM 10.0 LPM 15.0 LPM 20.0 LPM 30.0 LPM 40.0 LPM 50.0 LPM 80.0 LPM
Oxygen Concentration > 90% > 90% > 90% > 90% > 90% > 90% > 90% > 90% > 90% > 90% > 90% > 90%
Display Meter Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt Ammeter/ Voltmeter (Hours Counter - opt
Protections 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV 1. High Voltage, 2. High Current, 3. Short CKT, 4. NRV
MOC of NRV SS 304 SS 304 SS 304 SS 304 SS 304 SS 304 SS 304 SS 304 SS 304 SS 304 SS 304 SS 304
Size (HxBxD in mm) 500x400x180 770x400x180 770x430x180 770x400x300 770x400x300 800x400x500 800x500x500 1250x800x300 1250x800x500 1250x800x500 (1250x800x500)x2nos (1250x800x500)x3nos
